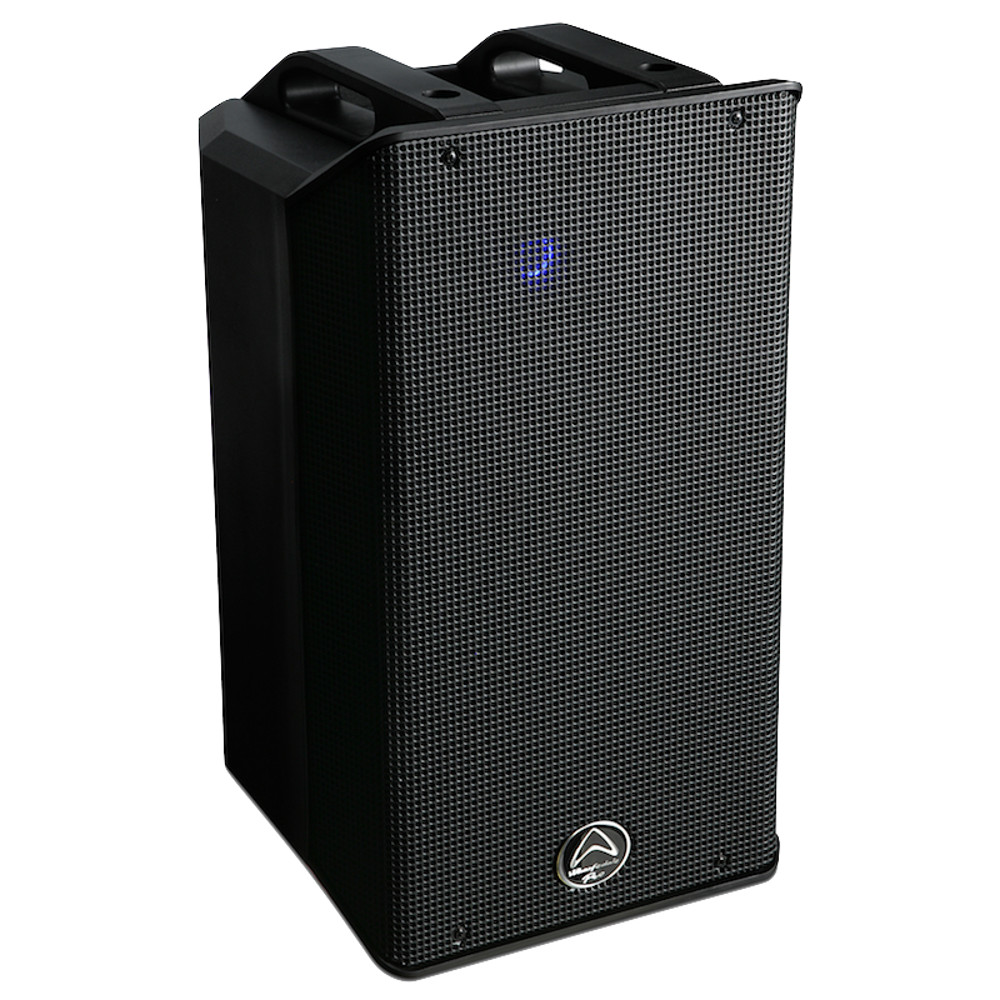

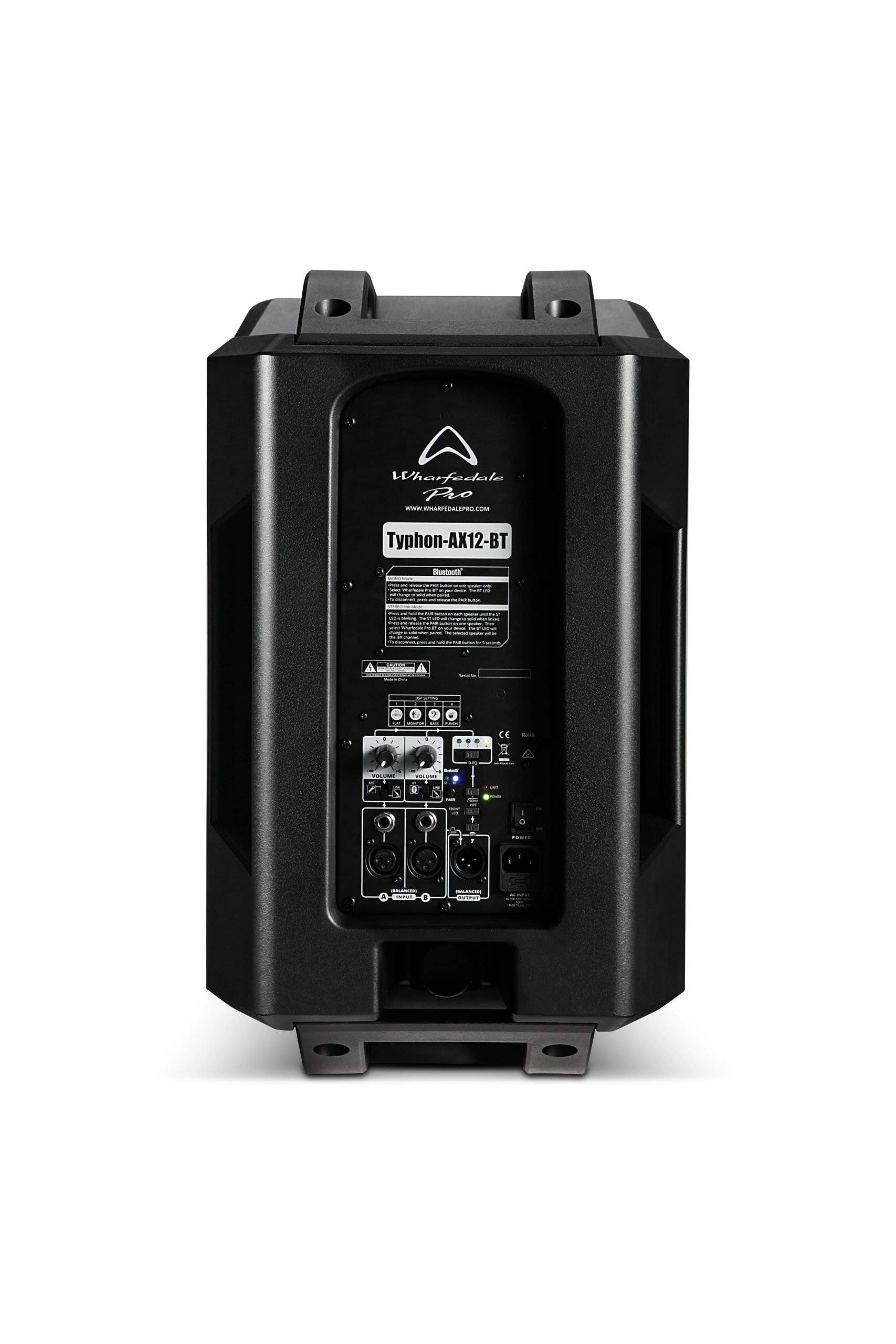

Caja Activa Wharfedale TYPHON-AX12-BT
SPECIFICATIONS
| Model Name | Typhon-AX12-BT |
| System type | Active 12″ 2-way with Bluetooth |
| Frequency Response (+/-3dB) | 55Hz-20kHz |
| Frequency Range (-10 dB) | 50Hz-20kHz |
| Maximum SPL @ 1m | 129dB |
| Sensitivity @ 1W / 1m | 98dB |
| Low Frequency Transducer | |
| Size (mm / inches) | 305mm / 12″ |
| Voice Coil Size (mm / inches) | 65mm / 2.5” |
| Rated Impedance | 4Ω |
| High Frequency Transducer | |
| HF Driver Type | Compression Driver |
| Coil Size (mm / inches) | 44mm/1.75″ |
| Exit Size (mm / inches) | 25mm/1″ |
| Diaphragm Material | Titanium |
| Rated Impedance | 8Ω |
| Nominal Coverage (H x V) | Hybrid Symmetry Horn 100° x 80° |
| Amplifiers | |
| Amplifier design | 2 x Class D |
| Power rating | 1440W Peak (1200W LF + 240W HF), 720W Continuous (600W LF + 120W HF) |
| DSP Controls | FLAT/MONITOR/BASS/PUNCH |
| Inputs | |
| Input – A | balanced |
| Input sensitivity | 775mV (0dBu) |
| Input connectors A/B | 2*XLR, 2*6.3mm jack |
| Input impedance | 20KΩ |
| Line output | Balanced XLR |
| Loop gain | 0dB |
| AC Power | 220~240VAC/100~120VAC 50/60Hz |
| Rigging | 9 x M8 threaded inserts |
| 35mm pole socket with lock screw | |
| 5 x carry handles | |
| Optional WPB-2 wall-mount bracket | |
| Enclosure | Injection moulded polypropylene |
| Grille material & finish | Full front – steel |
| Dimensions – Unpacked (mm / inches): | |
| Height | 558mm / 22.0″ |
| Width front | 344mm / 13.6″ |
| Width rear | 245mm / 9.6″ |
| Depth | 340mm / 13.4″ |
| Dimensions – Packed (mm / inches): | |
| Height | 645mm / 25.4″ |
| Width front | 425mm / 16.7″ |
| Width rear | 425mm / 16.7″ |
| Depth | 419mm / 16.5″ |
| Net Weight (kg / lbs) | 16.2kg / 35.64lbs |
| Gross Weight (kg / lbs) | 19.2kg / 42.24lbs |
